Furrowing Machine BS

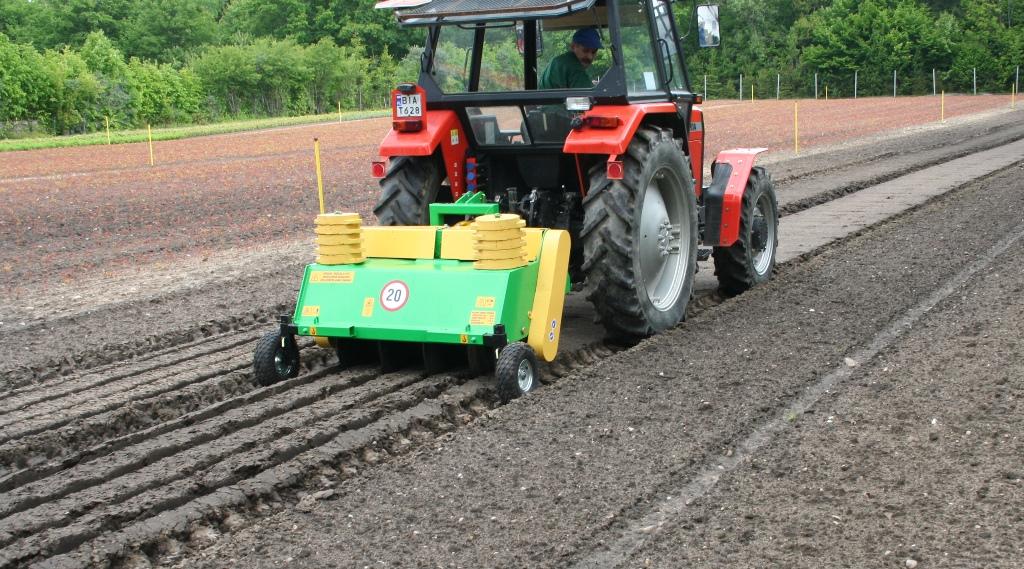

Furrowing machine is designed for making V-shaped furrows adapted for planting in tree nursery beds. The machine is mounted on a three-point tractor hitch and is powered with tractor's PTO drive shaft.
This machine is especially useful in the case of a heavy soil. It makes simultaneously from 2 to 5 furrows of a depth of 25 cm and width of 6 cm on top of the furrow. There is a possibility of adjusting spaces between furrows as a result of shifting the furrow-making discs along the main shaft.
Additionally the furrow machine can be loaded with weights to enable a proper working on heavy soils. In the case of individual requirements, the furrow machine can be equipped in components allowing for making furrows of different characteristics (e.g. wider or narrower).
TECHNICAL PARAMETERS
|
Parameter |
Data |
|
Type |
Tractor's three-point hitch-mounted, active |
|
Length |
1130 mm |
|
Width |
1550 mm |
|
Height |
1100 mm |
|
Operating discs diameter |
600 mm |
|
Number of operating discs |
5 pcs. |
|
Total Weight (with 5 discs) |
360 kg |
|
Disc Weight |
45 kg |
|
Disc rotation direction |
Drive direction |
|
Operating staff required |
1 person |
|
Tractor's minimum power |
45 kW (60 KM) |
|
PTO shaft rpm required |
540 rpm |
