Oak seeds dryer SSP

26.11.2015 | Paweł Cuprych

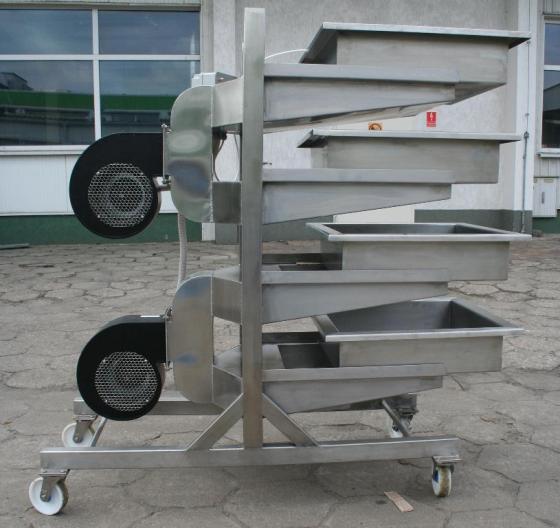

Overall dimensions: height 1250 mm, width 620 mm, length 1300 mm
Tray dimensions: width 620 mm, length 620 mm, depth 195 mm
Steel base construction on wheels with a brake and drain chamber

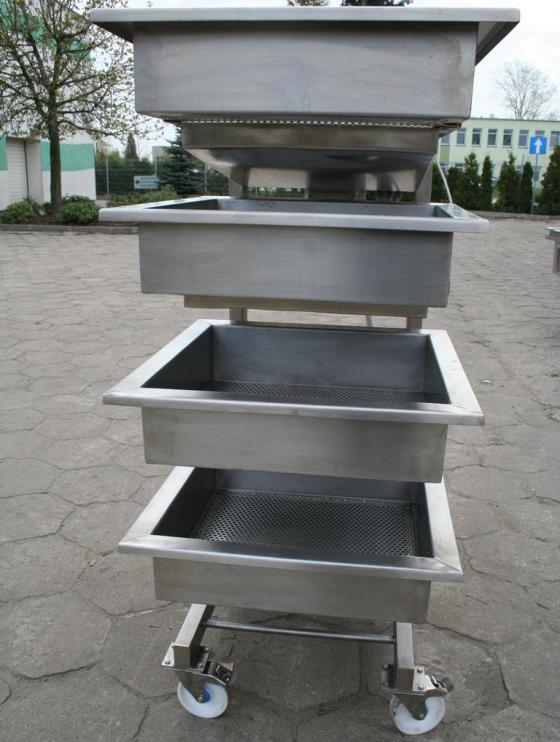

Construction in a form of a rack with 4 replaceable baskets
Bottom of the baskets made of stainless steel
Area allows for drying approximately 70 kg of seeds in a layer of 5 cm at the same time

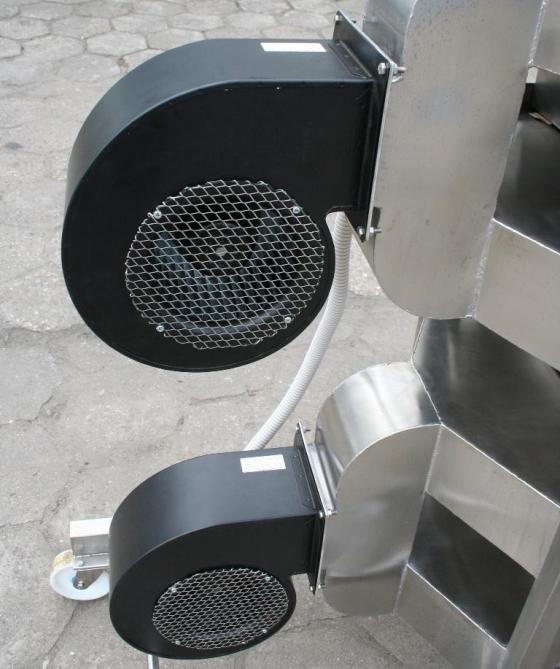

Drying using a fan blowing room temperature air
Blowing duct to each basket closed with an adjustable flap
Each blowing duct has a threshold holding water and draining it outside
Weight 130 kg
