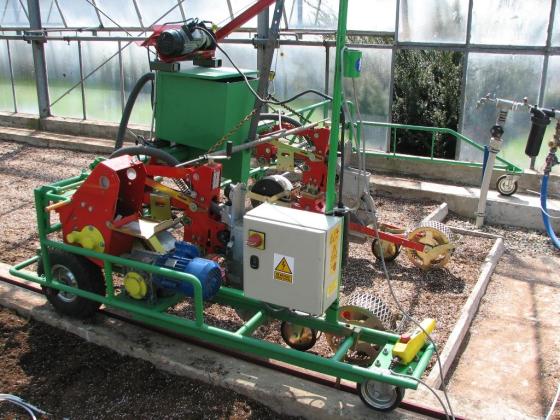

PRECISION SEED DRILL SPS
Precision seed drill SPS is designed for operating on small areas where the use of a tractor is impossible, i.e. in greenhouses. Thanks to its specific construction it allows to obtain very narrow intervals between seed rows.
The device enables seeding single seeds, placing them in adjustable distances between each other in the row.

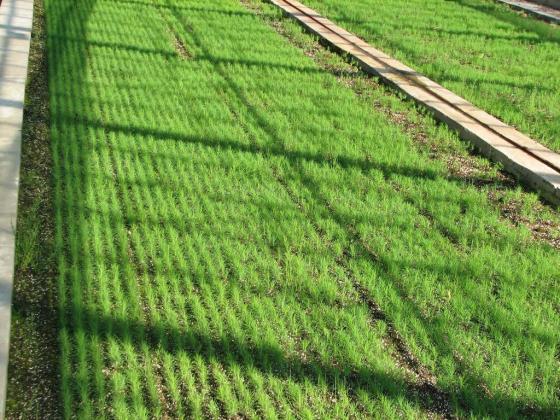

The seed drill can be applied in greenhouses, foil greenhouses, seed beds as well as small area open air tree nurseries. The device requires a special rail which can be permanently mounted on pathways (greenhouse) or can be mounted on a temporary track made of planks.
The device is powered by an electric current of 230V and 2kW power.
TECHNICAL PARAMETERS
|
Parameter |
Data |
|
Length |
1845 mm |
|
Width |
3240 mm |
|
Height |
2140 mm |
|
Weight |
300 kg |
|
Power |
~1x230 V/50 Hz |
|
Engine power |
0,75 kW |
|
Vacuum pump power |
1,2 kW |
|
Engine RPM |
0 – 1420 rpm |
|
Power demand |
2 kW |
|
Work speed |
26,45 m/min |
|
Seeding depth |
0 – 60 mm |
|
Row quantity in a module |
2 |
|
Row interval in a module |
50 mm |
|
Handling staff required |
1 person |
The device is equipped with a control panel.
