Powered plant lifter WSA

15.03.2016 | Paweł Cuprych

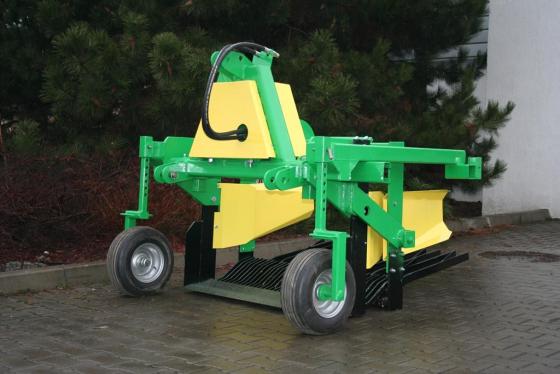

WSA plant lifter has been designed for lifting plants in arboretums, together with shaking off the excess of soil from plants' root system. The lifting blade is replaceable and there is a possibility of installing blades of various widths to the same main frame (in the range of the width of the frame).

DOWNLOAD CARD FROM A CATALOG

The blade is equipped with plant lifting grate elements. These elements of the device are fixed. Between the fixed components there are elements of moving grate that shake off soil from the roots of lifted plants. The grate is powered by a hydraulic motor.

To maintain a uniform depth of the blade, the device has been equipped with a set of adjustable depth wheels.

TECHNICAL PARAMETERS

Type	Three-point hitch hinged, active
Dimensions lenght height – without the cutting blade width	1750 mm approx. 1100 mm see table below
Working depth	up to 380 mm
Required pressure in the hydraulic system	160 MPa
Hydraulic oil flow	40 l/min
Work speed	2 - 5 km/h
Operating staff required	1 person

The main frame enables mounting cutting blades and grates of various widths. Approximate parameters depending on the width of components are presented below:

Optionally made:
