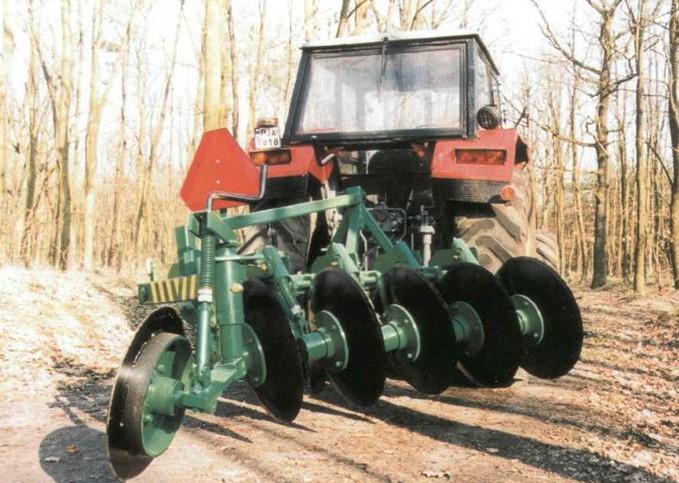

5-DISC PLOUGH P5T
The device has been designed to form firebreaks.
The 5-disc plough is assembled on a three-point hitch in tractors of 0,9T or 1,4T class.
The operating elements are plough discs, each on an independent suspension pressed down to the ground by a spring telescope. All discs are equally angled and their working width is 2 metres.
The plough has a depth wheel in front that allows to adjust the working depth and a furrow wheel located in the rear end for balancing side forces affecting the tractor during a work ride. It is suggested to use the plough seasonally each time in an opposite direction.
TECHNICAL PARAMETERS
|
Parameter |
Value |
|
Plough type |
Hinged |
|
Length |
2750 mm |
|
Width |
2990 mm |
|
Height |
1780 mm |
|
Weight |
640 kg |
|
Plowing depth |
Up to 180 mm |
|
Working width |
1600 mm |
|
Number of discs |
5 pcs |
|
Clearance |
Up to 210 mm |
|
Operating depth adjustment |
Continuously |
|
Speed of a work ride |
3 - 7 km/h |
|
Efficiency |
2 – 4 km/h |
|
Recommended tractor's power |
min 90 HP |
|
Attendance |
Tractor's operator |
