Sprayer for tree nurseries OS-1
CDA sprayers' elements have been applied in the OS-1 sprayer (spinning disc atomisers) – well known to Polish foresters thanks to Herbaflex devices – "chemical scythes" used for many years in Poland, as well as thanks to aviation atomisers used to fight down black arches.

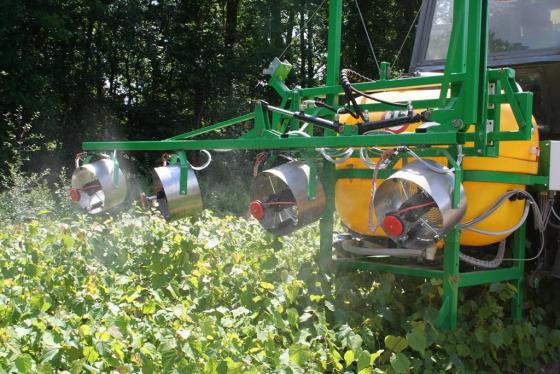

OS-1 sprayer (working in CDA technology – controlled droplet application) designed to work in arboretums is a tractor mounted sprayer based on Micron Electafan heads. The device is equipped in six spraying units mounted on a self-leveling bar which enables simultaneous spraying of 3 lines in a nursery. The main bar can be set on various heights depending on the requirements. Working direction and angle of the sprayers are fully adjustable. A liquid is dosed from a 300 or 100 litre container. Each of the spraying modules is connected to a separate on/off switch and a valve supplying the liquid. The main flow valve enables liquid mixing and adjusting the amount supplied to the spraying units.
Controlling the work of individual units (as well as folding and unfolding the arms) is performed from tractor's cabin without leaving the cabin.
CAUTION
- When aggregating with a tractor particular attention should be paid to a proper attachment of hydraulic cables, especially of the quick couplers. Blocking any of the quick couplers will result in damaging the hydraulic motor powering the alternator of the power supply.
- The sprayer is assembled in two production versions:
- with an electric power supply (OS-1/a) powered by tractor's hydraulic system. Hydraulic oil flow of 25-30 l/min is enough to power the alternator at a pressure of 20-30 bars (0,2-0,3 MPa).
- Without electric power supply (OS-1 simplified version) where electric power is taken from the tractor's electric system. It is required to assemble an additional socket providing electric current of up to 80A 12V.
TECHNICAL PARAMETERS
|
Parameter |
Value |
|
Type |
Mounted a on tractor's three-point hitch |
|
Transport width |
2200 mm |
|
Working width |
5500 mm |
|
Height |
2200 mm |
|
Spraying modules number |
6 pcs |
|
Own weight |
350 kg |
|
Weight with working liquid |
550 kg |
|
Minimum required tractor power |
50 HP |
|
Container capacity |
200 l |
|
Container for hand-washing liqiud |
7 l |
|
Recommended working speed |
from 3 to 5 km/h |
|
Handling staff |
1 – tractor operator |
|
Spraying system: - heads with atomisers - head rpm - voltage - head engine power - average liquid flow from head - vertical adjustment range - horizontal adjustment range |
pcs rpm V W ml/min ° ° |
6 8000 12 V DC 120 ok. 170 without limits (usable 180°) 180° (usable 90° - towards the rear end from the vertical axis) |
|
Working speed range |
km/h |
3÷10 |
|
Transport speed |
km/h |
up to 15 |
|
Operating staff required |
people |
1 person |
|
Hydraulic system: - recommended pressure - recommended flow |
MPa dm3/min |
|
|
Required tractor's class |
kN |
min. 0,6 |
