HYDRAULIC TIMBER CRANE OTL 40T

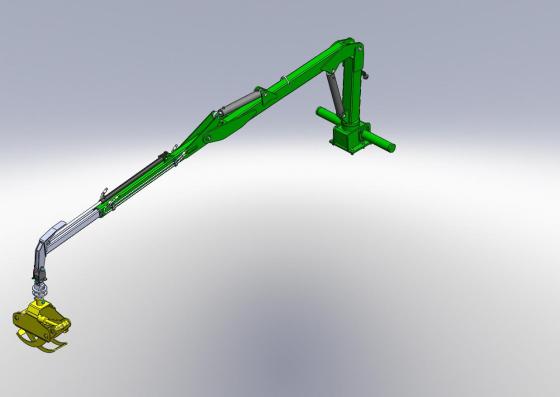

OTL 40T crane has been designed for performing technological works on forest areas during loading and unloading timber on forwarding and transportation vehicles.

DOWNLOAD CARD FROM A CATALOG

The crane is adapted to:

  • attachment to an assembly plate of a loader or stabilizers improving stability of the set during work,
  • work with tractors equipped with external hydraulic connectors or other system of hydraulic supply of specific parameters.

OTL 40T crane is to be mounted on trailers of 3000 kg payload. Construction of the trailer should provide a proper strength together with stabilizers – to provide stability during work.

The crane is for performing forestry (or agricultural) works. It is equipped with a timber grapple. It can be intended for ordinary loading and unloading works and it is forbidden to assemble a  lifting hook at the end of the crane's arm.



TECHNICAL PARAMETERS

PARAMETER

DATA

Lifting torque:



- Gross

20,4 kNm

- Net

16,8 kNm

Outreach:



- Basic

3,95 m

- Maximum

4,75 m

- With telescopic extension

4,75 m

Lifting capacity:



- @ 2,0 m net

600 kg

- @ 3,0 m net

490 kg

Slewing torque

8,0 kNm

Slewing angle

380°

Rotator torque

780 Nm

Rotator angle

Continuous

Grapple



- Gripping area tip to tip

0,12 m²

- Gripping width

198 / 232 mm

- Maximum opening

858 mm

- Minimum gripping diameter

Ø 35 mm

Grapple weight with link and rotator

85 kg

Total weight (with grapple, link and rotator)

630 kg

Working oil pressure

170 bar / 17,0 MPa

Recommended oil flow

20-40 L/min
